Cabinet Heater, Swivel Nozzle Heads, 98KW

Thermobile Proheat Heater 333,000BTU - no tank

*Please state fuel type (diesel or kerosene) at time of ordering*

Thermobile Proheat heaters are perfect for small workshops, garages, showrooms, and retail areas. Their compact design with control panel, thermostat, oil burner and warm air diffuser head all integrated into one unit makes installation easy and cost effective. This version of the Proheat 100 ERP requires connection to an external bulk fuel tank. Fitted with a low noise centrifugal fan. Automatic operation, with time delay for fan start-up until heater warms up, and over-heat shutdown. Two swivel nozzles on the head of the heater direct heat in the required direction. The cabinet heater can also be used for cold air circulation during the summer months. Thermal efficiency up to 93% is achieved by this heater.

erp logo

It is now mandatory for all new warm air heaters used for the comfort of occupants of a heated space to comply with the new ErP (Energy related Products) regulations (EU directive 2009/125/EC - Lot 21 Tier 2) regarding Eco friendly and Energy Efficient operation.

  • ● Manufacturer: Thermobile
  • ● Model: ProHeat 100 ERP
  • ● Cabinet heater supplied with swivel nozzles kit
  • ● Nominal heat output: 98 KW (333,000 BTU)
  • ● Max temperature increase: 31 deg C
  • ● Air flow: 8800 m3/hr
  • ● Flue diameter required: 200mm
  • ● Tank Capacity: NO TANK
  • ● Voltage: 400V 3-phase

heater product code : R096.6097
for recommended flue kit see : R018.3168

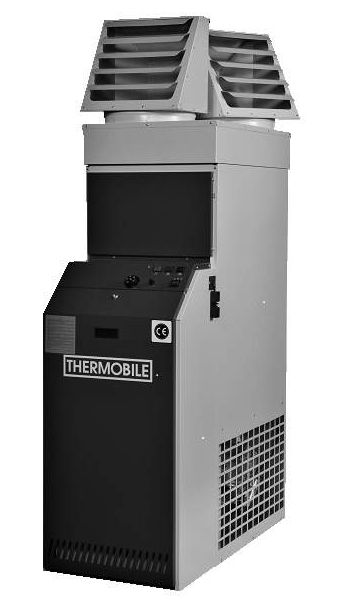

R096.6097 cabinet heater

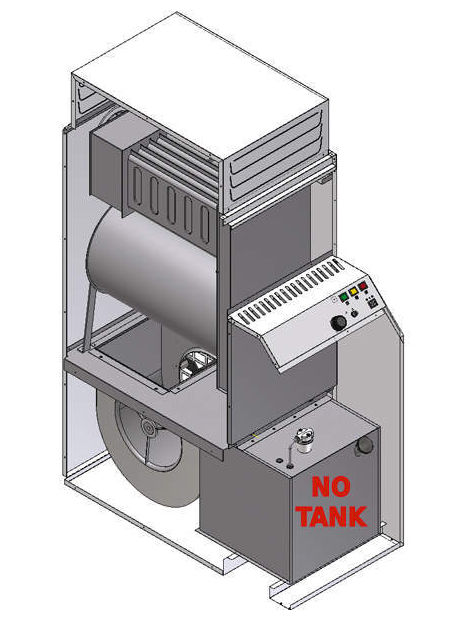

cabinet heater internal


Cabinet Heater without tank, Swivel Heads, 98KW 333,000BTU, 200mm

£5,365.00 + VAT..... £6,438.00 (GBP)
carriage code 9

call us to order

FINANCE AVAILABLE (£1000 minimum)
