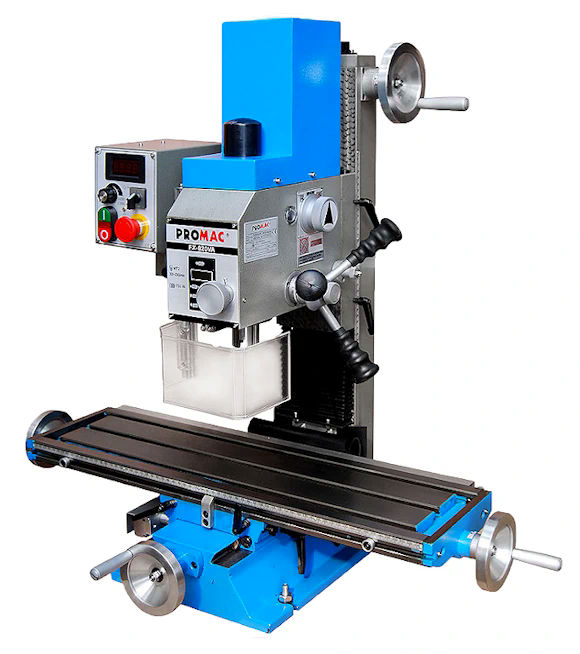

Small Milling Machine

This small mill drill machine has two variable speed ranges with electronic control. Speeds range from 300 to 1150rpm, and 600 to 2300rpm. This model makers milling machine, which includes reverse rotation and digital depth display, can drill diameter 20mm, tap M10, end mill diameter 16mm and face mill diameter 50mm. The swivel head can tilt 45 degrees left or right.

• ● Manufacturer: Promac
• ● Model: FX-820VA
• ● Max. Drilling Capacity: 20mm
• ● Max. Tapping Capacity: M10
• ● Max. Face Milling Capacity: 50mm
• ● Max. End Milling Capacity: 16mm
• ● Spindle Speeds: 300 to 2300 rpm
• ● Spindle Size: 2 Morse Taper
• ● Spindle Nose to Table: 350mm
• ● Spindle Stroke: 50mm
• ● Draw Bar: M10
• ● Table Dimensions: 180mm x 700mm
• ● T-slot: 10mm
• ● X stroke: 480mm
• ● Y stroke: 175mm
• ● Z stroke: 280mm
• ● Electric Supply: 230V 1-phase
• ● Overall Dimensions: 860mm x 550mm x 860mm
• ● Weight: 128kg

  2 years warranty
