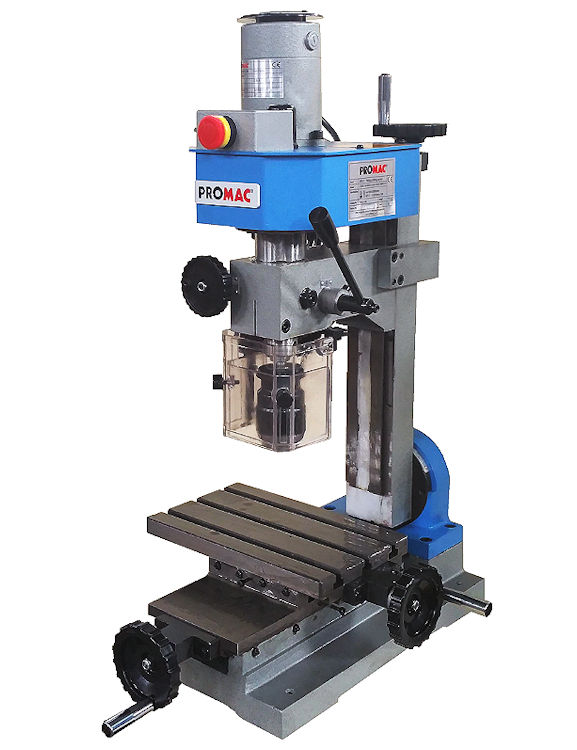

Mini Milling Machine

This model makers mill drill has a 2 speed gearbox and electronic speed control giving 2 variable speed ranges between 100 to 1000rpm, and between 200 to 2000 rpm. The mill drill, which includes reverse rotation, is suitable for tapping up to M6, drilling up to 10mm using the chuck, face milling steel up to 20mm and end milling up to 10mm. The vertical column can swivel 45 degrees to either the left or the right.

• ● Manufacturer: Promac
• ● Model: JMD-1-M
• ● Max. Drill Capacity: 10mm
• ● Max. Tapping Capacity: M6
• ● Max. Face Milling Capacity: 20mm
• ● Max. End Milling Capacity: 10mm
• ● Spindle Speeds: 100 to 2000 rpm
• ● Spindle Size: 2 Morse Taper
• ● Spindle Nose to Table: 265mm
• ● Spindle Stroke: 30mm
• ● Draw Bar: M10
• ● 10mm Drill Chuck with MT2 Arbor
• ● Table Dimensions: 145mm x 240mm
• ● T-slot: 8mm
• ● X stroke: 190mm
• ● Y stroke: 100mm
• ● Electric Supply: 230V 1-phase
• ● Overall Dimensions: 630mm x 450mm x 550mm
• ● Weight: 40kg

  2 years warranty
