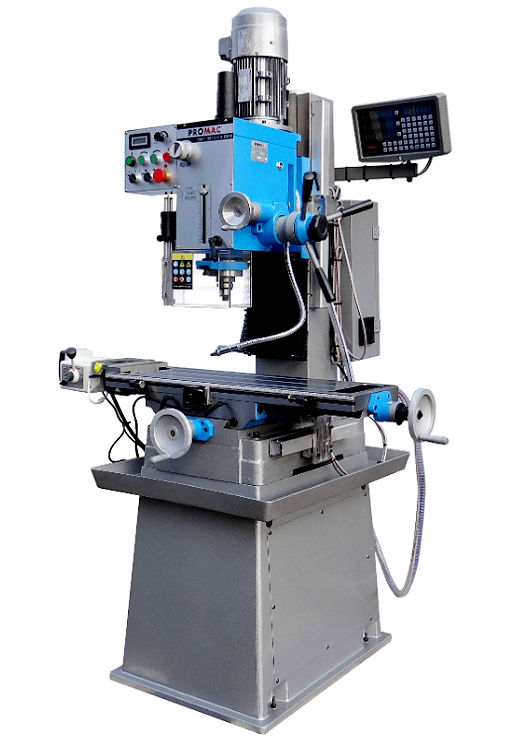

Milling and Drilling Machine

This professional milling machine has a 2-speed gearbox and electronically variable speeds ranging from 75rpm to 2500rpm. It can face mill up to 80mm, drill up to 45mm or tap up to M16, and the head can tilt right or left by 90 degrees. There is automatic feed on the x-axis.

• ● Manufacturer: Promac
• ● Model: JMDT-804516X-DRO
• ● Includes base/stand
• ● Digital Read Out for all 3 axes
• ● 45mm drilling capacity
• ● 16mm tapping capacity
• ● 32mm end milling capacity
• ● 80mm face milling capacity
• ● Head tilts 90 degrees right or left
• ● 4 Morse Taper spindle
• ● M16 draw bar
• ● 13mm drill chuck with MT4 arbor
• ● 120mm spindle stroke
• ● 460mm from spindle to table
• ● 560mm X-axis stroke (power feed)
• ● 190mm Y-axis stroke
• ● 350mm Z-axis stroke
• ● 800mm x 240mm table
• ● 14mm T-slots
• ● Speed Range (Low): 75 to 435 rpm
• ● Speed Range (High) 435 to 2500 rpm
• ● 2HP 400V 3-phase motor
• ● Weight: 486 kg
• ● Dimensions: 960 x 1280 x 2080mm high

  2 years warranty
