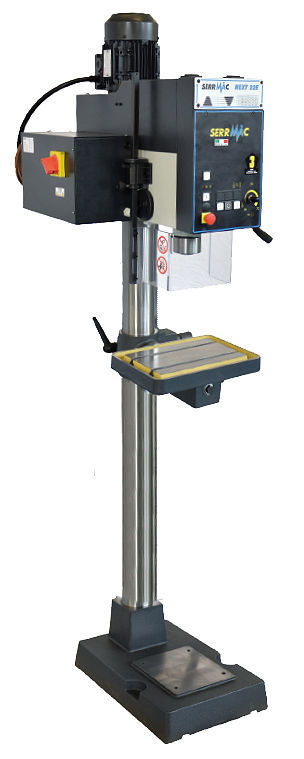

230V Pillar Drill, Variable Speed

Drills 25mm, Taps M16

This Italian top quality pillar drill is belt driven with an inverter motor providing electronic speed variation from 98rpm to 3600rpm. A drilling capacity of 25mm and tapping capacity of 16mm in mild steel is via a Morse Taper 3 spindle which can accomodate an optional chuck. Reverse rotation is provided to withraw the tap. This version of the V25E drill has a tilting table.

Note: chucks are an optional accessory which should be ordered separately.

  • ● Manufacturer: Serrmac
  • ● Model: V25E-2512
  • ● Industrial Pillar Drill (single phase)
  • ● Tilting work table
  • ● 750W 230V electric motor
  • ● Speed Range from 98 revs/min to 3600 revs/min
  • ● Variable speeds (inverter drive)
  • ● 25mm Drilling Capacity in Mild Steel
  • ● 16mm Tapping Capacity
  • ● 100mm Spindle Travel
  • ● 150mm Throat
  • ● 3MT Spindle
  • ● Dimensions: 410 x 560 x 1970mm high
  • ● Weight: 185 Kg

  Three years warranty

product code : R095.3624

R096-3624 variable speed drill press

Serrmac V25E-2512

Pillar Drill, Variable Speed, Drills 25mm, Taps M16, MT3, 230V

£3,345.00 + VAT..... £4,014.00 (GBP)
carriage code 11

call us to order
