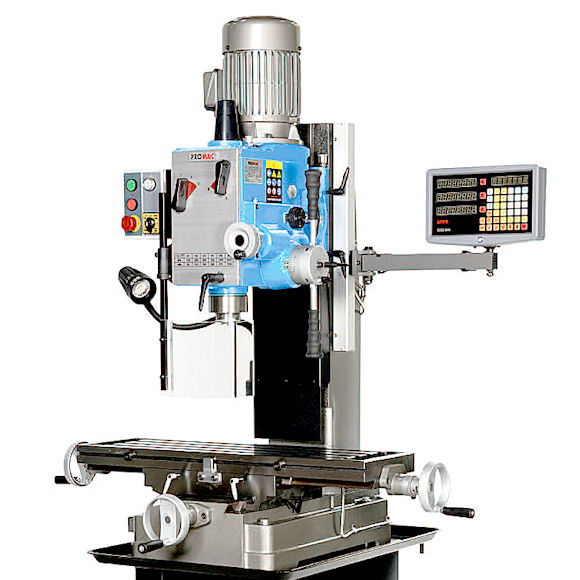

Milling Machine

This professional mill-drill machine has a 12 speed gearbox with speeds ranging from 50rpm to 2500rpm. Tooling is attached using an ISO30 arbor. The head can tilt right by 30 degrees or left by 90 degrees. There is an automatic down feed, and a xyz digital visual display. Mill up to 100mm using a face mill, and up to 20mm end mill, or drill up to 30mm diameter, and tap up to 20mm.

• ● Manufacturer: Promac
• ● Model: JMD-45PFD-T
• ● Digital Read Out for all 3 axes
• ● 3 Spindle Power Feeds : 0.12/0.18/0.25mm per rev
• ● 32mm maximum drilling capacity
• ● M20 maximum tapping capacity
• ● 20mm milling capacity (end mill)
• ● 100mm milling capacity (face mill)
• ● Head tilts 90 degrees left, and 30 degrees right
• ● ISO30 Taper spindle (DIN 2080)
• ● M12 draw bar
• ● 13mm drill chuck with ISO30 arbor
• ● 107mm spindle stroke
• ● 460mm from spindle to table
• ● 520mm X-axis travel
• ● 210mm Y-axis travel
• ● 825mm x 240mm table
• ● 16mm T-slots
• ● 12 Speeds: 50 to 2500rpm
• ● Forward/reverse rotation
• ● 1.5HP 400V 3-phase motor
• ● Weight: 332 kg
• ● Dimensions: 960 x 1280 x 2080mm high

• ● Optional base with tray available to purchase separately

  2 years warranty
