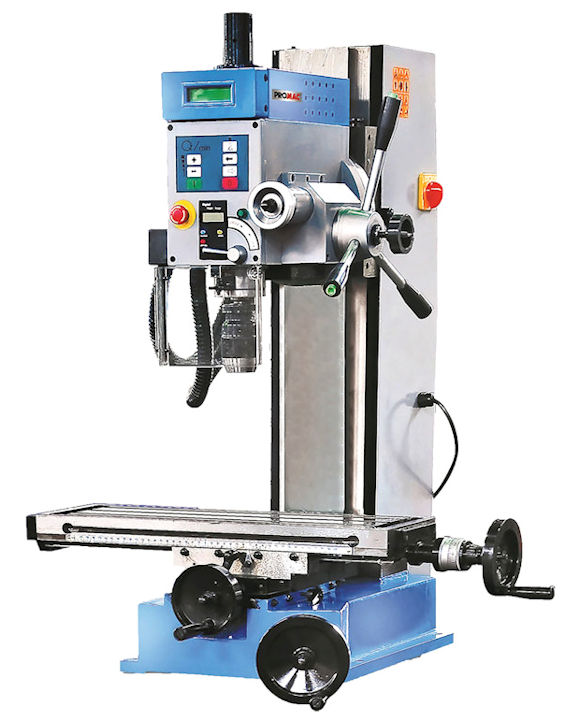

Milling & Drilling Machine

This model makers milling-drilling machine has variable speed drive giving a range between 100 to 1750rpm, displayed on a digital readout. The mill drill, which includes reverse rotation, is suitable for tapping up to M10, drilling up to 20mm, face milling steel up to 50mm and end milling up to 20mm. The head can swivel 90 degrees to the left, and 45 degrees to the right.

• ● Manufacturer: Promac
• ● Model: JMD-3-M
• ● Max. Drill Capacity: 20mm
• ● Max. Tapping Capacity: M10
• ● Max. Face Milling Capacity: 50mm
• ● Max. End Milling Capacity: 20mm
• ● Spindle Speeds: 100 to 1750 rpm
• ● Spindle Size: 3 Morse Taper
• ● Spindle Nose to Table: 410mm
• ● Spindle Stroke: 70mm
• ● Draw Bar: M12
• ● 13mm Drill Chuck with MT3 Arbor
• ● Table Dimensions: 510mm x 160mm
• ● T-slot: 12mm
• ● X stroke: 400mm
• ● Y stroke: 145mm
• ● Z stroke: 300mm
• ● Electric Supply: 230V 1-phase
• ● Overall Dimensions: 850mm x 560mm x 700mm
• ● Weight: 165kg

  2 years warranty
