Milling Machine

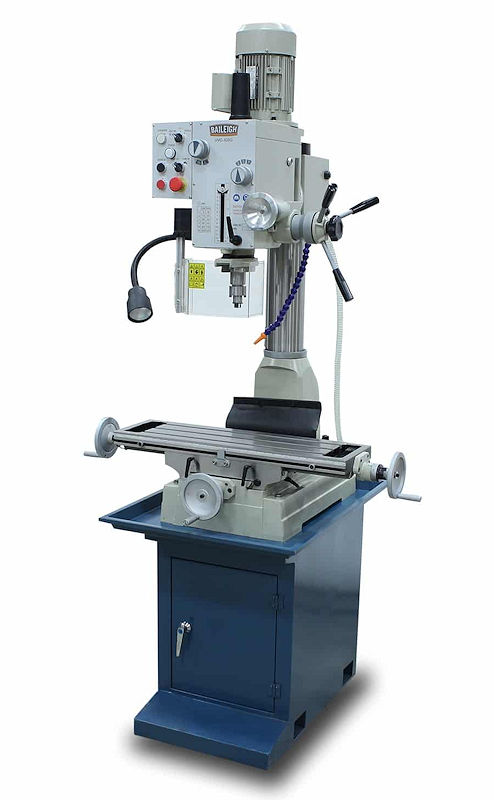

The Baileigh VMD-828G mill/drill gives the benefit of having two machines in one; both a pillar drill and a milling machine. The head is gear driven with six spindle speeds. Feed is manual. The head can tilt 90 degrees right or left, and an additional feature is the ability to rotate the head horizontally around the colomn. This mill-drill is also supplied with a pumped coolant system, and a combined storage cabinet / stand.

• ● Manufacturer: Baileigh
• ● Model: VMD-828G
• ● Gear Driven Mill/Drill
• ● Drilling, Milling, Tapping
• ● 32mm drilling capacity
• ● 76mm face milling capacity
• ● Forward/reverse rotation
• ● MT4 spindle taper
• ● 120mm spindle stroke
• ● 430mm from spindle nose to table
• ● 500mm X-axis travel
• ● 230mm Y-axis travel
• ● 730mm x 210mm table
• ● 14mm T-slots
• ● Six spindle speeds (75, 170, 280, 540, 960, 1600rpm)
• ● 1.5HP 230V main motor
• ● Coolant motor and pump
• ● Weight: 270 kg
• ● Dimensions: 800mm x 1075mm x 1090mm
