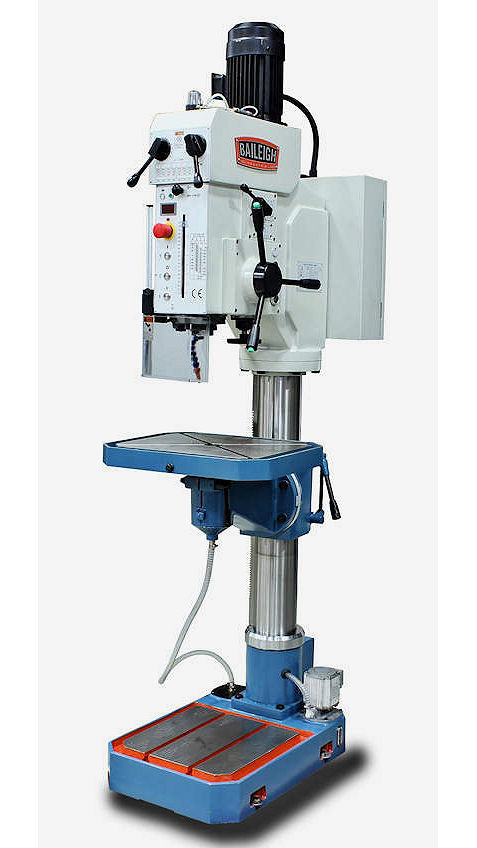

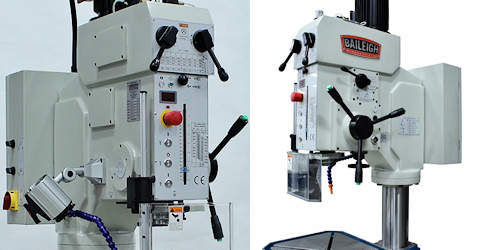

BAILEIGH DP-1750G

Drill Press, Gear Driven, drills 40mm, taps 25mm, MT4, 1500W 400V

This industrial pillar drill is gear driven, with eighteen different spindle speeds to choose from. Spindle dowm speed can be powered electrically, with a choice of different down feed speeds. The drill is also suitable for tapping up to M24 threads, and the motor is reversable for withdrawing. A pumped coolant system is included. The drill has a large 700mm swing. The table is a unique L-shape, which can be rotated and tilted 90 deg left or right.

  • ● Manufacturer: Baileigh
  • ● Model: DP-1750G
  • ● Max. Drill Capacity: 40mm
  • ● Max. Tapping Capacity: M24
  • ● Spindle Speeds: 60 to 1740 rpm
  • ● Spindle Taper: 4MT / MT4
  • ● Spindle Travel: 180mm
  • ● Table Dimensions: 560mm x 560mm
  • ● Base Dimensions: 510mm x 735mm
  • ● Motor Size: 2HP (1500W)
  • ● Electric Supply: 400V 3-phase
  • ● Shipping Dimensions: 2270mm x 580mm x 1100mm
  • ● Shipping Weight: 600kg

drill product code : R095.2222

r095-2222 gear driven drill press



R095.2222

BAILEIGH DP-1750G - Drill Press, Gear Driven, drills 40mm, taps 25mm, MT4, 1500W 400V




£2,921.00 + VAT..... £3,505.20 (GBP)
carriage code 11

call us to order

BAILEIGH
DP-1750G
