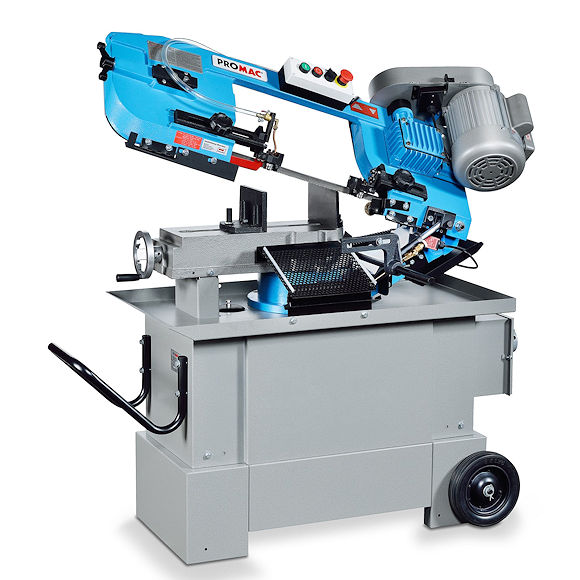

Single Phase (230V) Metal Band Saw
Cuts up to 180mm round, or 250 x 180mm rectangular
A metal cutting band saw with hydraulic assisted descent, integrated coolant system and quick release vice. There are 4 blade speeds blade (belt drive). The cutting arm swivels up to 45 degrees to the right for mitre cuts. This version is 230V single phase (also available in 3 phase).
- ● Manufacturer: Promac
- ● Model: 917M
- ● 230V Metal Cutting Band Saw
- ● Swivel Bow for Mitre Cutting
- ● 290mm Vice (working height 780mm)
- ● 180 x 150mm maximum cutting capacity
- ● Dimensions (LWH): 1000mm x 430mm x 1250mm
- ● Weight: 180kg
2 years warranty
230V bandsaw product code : R081.2019
| Specifications | |
|---|---|
| ● Power | 230V, 1-Phase |
| ● Motor | 0.75 kW |
| ● Mitre Angle | 1 - 45° |
| ● Capacity Round 0°/ 45° | 180 mm / 105 mm |
| ● Capacity Square 0°/ 45° | 180 x 180 mm / 105 x 105 mm |
| ● Capacity Rectanglar 0°/ 45° | 180 x 250 mm / 100 x 120 mm |
| ● 4 Blade Speeds | 22,33,45,65m/minute |
| ● Blade Size | 2360 x 19 x 0.9 mm |
