61KW Biofuel / Waste Oil Burning Heater 210,000 BTU

Thermobile Bioenergy 3 Heater

bioenergy logo

Save on workshop heating costs in small workshops or warehouses by using linseed oil or rapeseed oil as your fuel. This biofuel / waste oil burning heater is the largest model in the Bioenergy range. It has it's origins in the burning of waste engine oil and in this application it is still very successful world wide (but no longer financially viable in Europe due to regulations). The heater has been re-developed to operate on rapeseed or linseed oil, but can also operate using diesel, 35 sec heating oil, or PFO (Processed Fuel Oil).

  • ● Sealed combustion chamber suitable for use in garages
  • ● Burner drawer system for easy access to clean burner dish
  • ● Overheat thermostat prevents unit from overheating
  • ● Flame failure protection switches off heater if ignition problems arise
  • ● Burner pan overflow device switches off fuel pump to prevent oil spillage
  • ● Combustion chamber pressure relief valve for safety
  • ● High efficiency heat exchanger for maximum heat
  • ● An optional combustion air intake kit can draw air from outside (no dangerous fumes)

BioEnergy 3 Waste Oil Burning Heater

  • ● Manual Ignition Waste Oil Burner
  • ● Electricity Supply : 230V
  • ● High and Low heat settings
  • ● Net Heat Output BTU : 102,000 and 170,000 BTU/hr (actual maximum will depend on type of fuel used)
  • ● Heated Air Flow : 3000 cubic metres/hour
  • ● Fuel Consumption : 3.8 - 6.2 litres/hr
  • ● Fuel Tank Capacity : 55 litres
  • ● Dimensions : 820 W x 1150 D x 1280 H

Thermobile waste oil heaters are backed by 50 years experience in the development and manufacture of space heaters, ensuring a reliable product which will give full customer satisfaction.

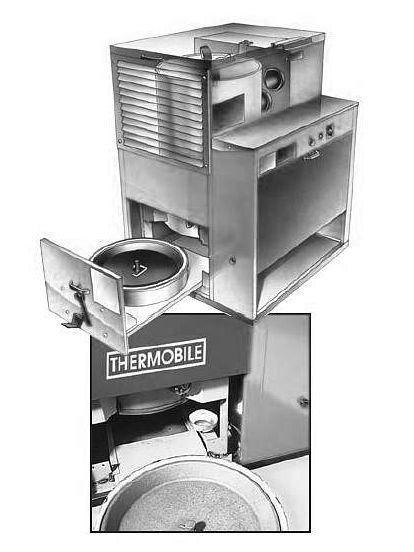

BioEnergy 3 Oil Heater diagram
BioEnergy 3 Oil Heater drawer
Drawer system for ease of access to burner dish

Burning of waste engine oil with waste oil heaters is possible, but is regulated with very high permit costs and fees making it uneconomic. See more information.


heater product code : R096.6103

OPTIONAL ACCESSORIES
internal (vertical) combustion air kit : R018.3015
external (horizontal) combustion air kit : R018.3016
complete flue kit : R018.3002
1000mm flue pipe : R018.3063
500mm flue pipe : R018.3064
flue 45 degree bend : R018.3068



R096.6103

THERMOBILE 41.911.150 - 61KW Biofuel Heater / Rapeseed Oil Burner, 210,000 BTU



manufacturers list price £3625 + VAT
OUR PRICE IS ONLY
£2,379.00 + VAT..... £2,854.80 (GBP)

carriage code 8

call us to order
