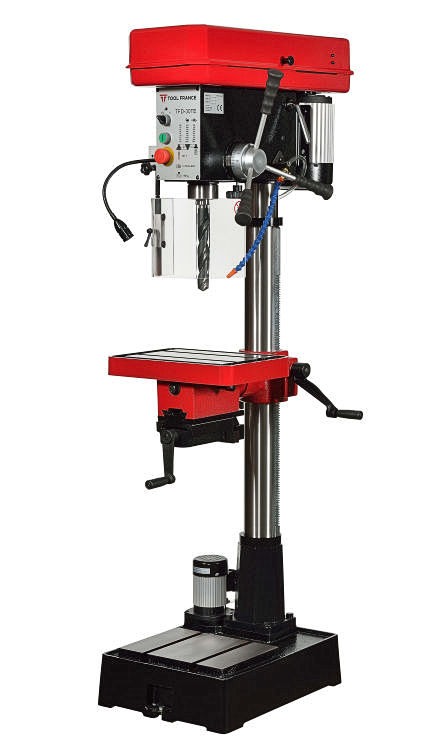

Industrial Pillar Drill - 32mm capacity

The TFD-30TE vertical drill press can drill up to 32mm diameter in mild steel. With a 3-phase (400V) 2-speed motor and 9 V-belt positions, this drill has 18 speeds ranging from 105rpm to 2650rpm. The Morse Taper 3 spindle has a vertical stroke of 125mm. A keyless drill chuck is supplied. The table rotates, with a vice on one side which can be turned upside down and stored underneath when not required. This drill press has a coolant system, plus an LED worklight.

  • ● Manufacturer: Tool France
  • ● Model: TFD-30TE
  • ● Industrial Pillar Drill
  • ● 400V 3-phase 2-speed motor
  • ● Speed Range 105rpm - 2650rpm
  • ● 18 different rotation speeds
  • ● 32mm Drilling Capacity in Mild Steel
  • ● 125mm Spindle Stroke
  • ● 3 Morse Taper Spindle
  • ● Table Size : 290 x 390mm
  • ● 12mm T-Slots on Table
  • ● Table tilts 180 degrees for Integral Vice
  • ● Table Vice clamps up to 162mm
  • ● Vise Jaws 203mm wide
  • ● Includes Coolant System with reservoir
  • ● 1745mm High
  • ● 450mm Wide
  • ● 750mm Deep
  • ● Weight: 216 Kg

  Three years warranty

product code : R095.3714

R096-3714 workshop pillar drill

R095.3714
T.F TFD-30TE

Pillar Drill, 32mm drilling capacity, 18 speeds, MT4, Vice, 0.75KW (2sp) 400V

£2,928.00 + VAT..... £3,513.60 (GBP)
carriage code 11


call us to order

FINANCE AVAILABLE (£1000 minimum)
