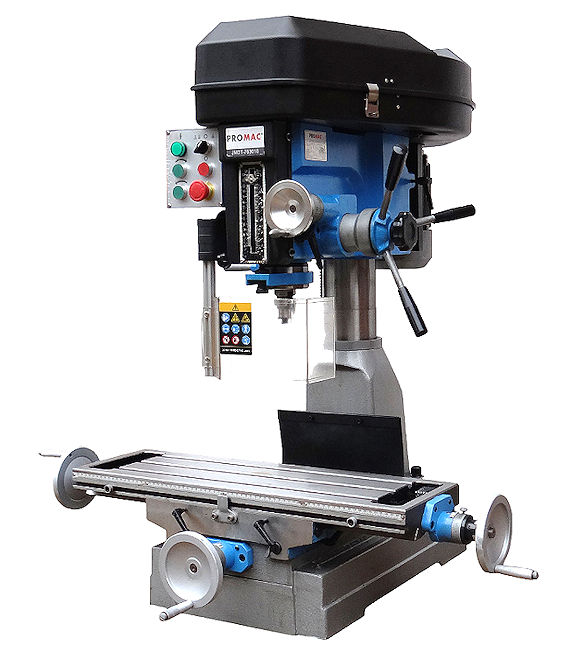

Mill Drill

This mill-drill has 12 speeds,adjusted by belts on stepped pulleys. The milling machine includes reverse rotation and is suitable for tapping up to M16. Maximum milling capacity is diameter 76mm using a face mill in steel, or diameter 20mm using an end mill.

• ● Manufacturer: Promac
• ● Model: JMDT-763016
• ● Max. Drill Capacity: 30mm
• ● Max. Tapping Capacity: M16
• ● Max. Face Milling Capacity: 76mm
• ● Max. End Milling Capacity: 20mm
• ● Spindle Speeds: 100 to 2080 rpm
• ● Spindle Size: 3 Morse Taper
• ● Spindle Nose to Table: 440mm
• ● Spindle Stroke: 120mm
• ● Draw Bar: M12
• ● 13mm Drill Chuck with MT3 Arbor
• ● Table Dimensions: 730mm x 210mm
• ● T-slot: 14mm
• ● X stroke: 500mm
• ● Y stroke: 175mm
• ● Electric Supply: 230V 1-phase
• ● Overall Dimensions: 1105mm x 1010mm x 1080mm
• ● Weight: 290kg

  2 years warranty
