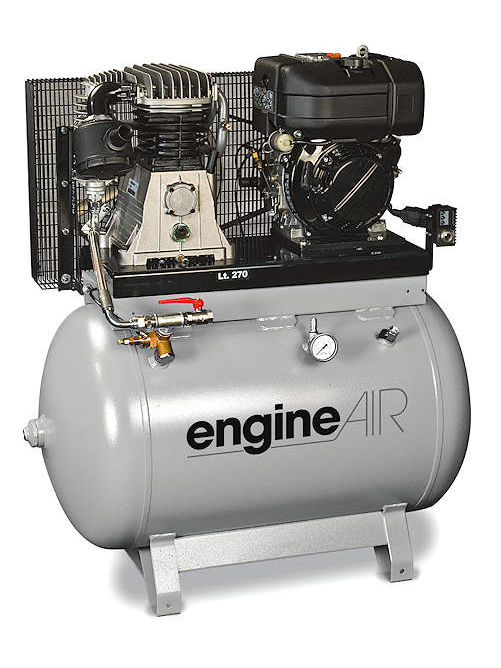

EngineAir 8/270 Diesel diesel compressor

Diesel Air Compressor, 22 cfm, 14 bar, 270 Litres, 7.5HP Lombardini Elec Start

Heavy duty diesel engine air compressor from Italian manufacturer ABAC (part of the Atlas Copco Group). A Lombardini diesel engine is combined with an ABAC 2 cylinder / 2 stage heavy duty pump, both mounted on a base plate supported by anti-vibration rubber mounts for reduced vibration, noise reduction and longer service life. A LED control panel provides battery charge and oil overpressure indication for the electric start engine. These stationary air compressors are for permanent installation indoors. Not to be used outdoors.

The Outdoor Noise Directive 2000/14/EC regulates the noise emissions into the environment by outdoor equipment. Small Diesel Engine Driven Air Compressors are generally unable to meet the requirements of this directive meaning that they are not to be used outdoors, or on mobile plant, trucks or vans. However they are allowed to be installed as permanently fixed plant.

This compressor must be installed on anti-vibration mounts.

  • ● Manufacturer: EngineAir
  • ● Model: 8/270 Diesel
  • ● Diesel engine driven stationary air compressor
  • ● Cast iron cylinder
  • ● Manufactured in Italy
  • ● Piston Displacement: 22 cfm
  • ● Maximum Pressure: 14 bar (200 psi)
  • ● Air Receiver: 270 litres
  • ● Engine: 7.5HP Lombardini 15LD 350 diesel
  • ● Electric Start (battery and leads are not included)
  • ● Weight: 239kg
  • ● Dimensions: 1395L x 745W x 1500H

Delivery lead times can vary, but normally about 5-10 days.

An optional 2.5m long flexible exhaust pipe kit is available.

compressor product code : R097.2021

diesel engined air compressor R097.2021



R097.2021

EngineAir 4116022693 - Diesel Air Compressor, 22 cfm, 14 bar, 270 Litres, 7.5HP Lombardini Elec Start



manufacturers list price £6 + VAT
OUR PRICE IS ONLY

carriage code 0





EngineAir
8/270 Diesel
