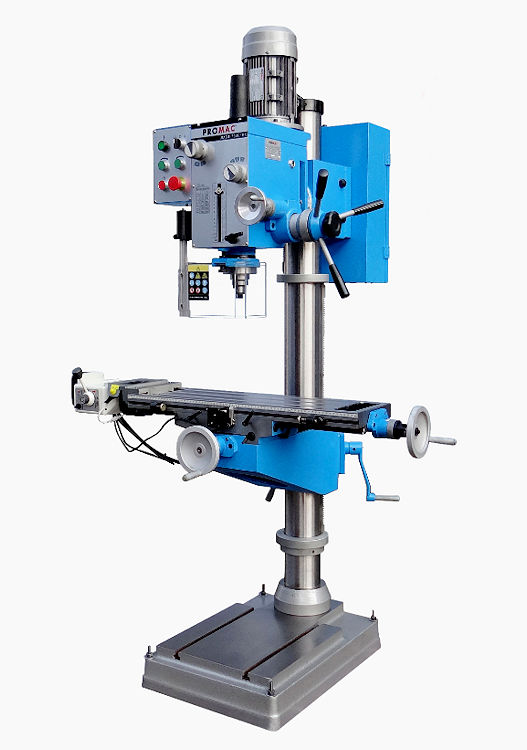

Mill Drill Machine

This professional milling machine has a mechanical gearbox producing 12 speed options ranging from 75rpm to 3200rpm. Face mill up to 76mm, drill up to 40mm or tap up to M16. The head tilts right or left by 90 degrees and the table can be raised or lowered. There is automatic feed on the x-axis.

• ● Manufacturer: Promac
• ● Model: JMDT-764016X
• ● 40mm drilling capacity
• ● 16mm tapping capacity
• ● 32mm end milling capacity
• ● 76mm face milling capacity
• ● Tilting head 90 degrees left or right
• ● MT4 spindle taper
• ● M16 draw bar
• ● 13mm drill chuck with arbor
• ● 120mm spindle travel
• ● 610mm from spindle to table
• ● 490mm X-axis travel (automatic feed)
• ● 180mm Y-axis travel
• ● 730mm x 210mm table
• ● 14mm T-slots
• ● 12 Spindle speeds from 75 to 3200 rpm
• ● 2HP 400V 3-phase motor
• ● Weight: 365 kg
• ● Dimensions: 950 x 760 x 1885mm high

  2 years warranty
