THERMOBILE BIOENERGY 1

27 KW Biofuel Heater / Rapeseed Oil Burner, 102,000 BTU

bioenergy logo

Save on workshop heating costs in small workshops or warehouses by using linseed oil or rapeseed oil as your fuel. This Bio-Energy Heater has it's origins in the burning of waste oil and in this application it is still very successful world wide (but no longer viable in Europe). The heater has been re-developed to operate on rapeseed or linseed oil, but can also operate using diesel, 35 sec heating oil, or PFO (Processed Fuel Oil).

  • ● Sealed combustion chamber suitable for use in garages
  • ● Overheat thermostat prevents unit from overheating
  • ● Flame failure protection switches off heater if ignition problems arise
  • ● Burner pan overflow device switches off fuel pump to prevent oil spillage
  • ● Combustion chamber pressure relief valve for safety
  • ● An optional combustion air intake kit can draw air from outside (no dangerous fumes)

AT307 Waste Oil Heater

  • ● Manual Ignition Biofuel / Multifuel Oil Heater
  • ● Electricity Supply : 230V
  • ● High and Low heat settings
  • ● Net Heat Output BTU : 60,000 and 80,000 BTU/hr (actual maximum will depend on type of fuel used)
  • ● Heated Air Flow : 1000 cubic metres/hour
  • ● Fuel Consumption : 2 - 3 litres/hr
  • ● Fuel Tank Capacity : 50 litres
  • ● Dimensions : 540 W x 1050 D x 1270 H

Thermobile heaters are backed by 50 years experience in the development and manufacture of space heaters, ensuring a reliable product which will give full customer satisfaction.

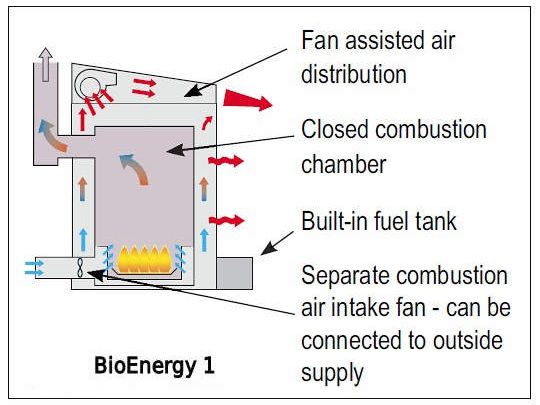

BioEnergy 1 Oil Heater diagram

Burning of waste engine oil with these heaters is possible, but is regulated with very high permit costs and fees making it uneconomic. See more information.


heater product code : R096.6101

OPTIONAL ACCESSORIES
internal (vertical) combustion air kit : R018.3017
external (horizontal) combustion air kit : R018.3018
hot air booster : R018.3019
basic flue kit : R018.3000
complete flue kit : R018.3001
1000mm flue pipe : R018.3051
500mm flue pipe : R018.3052
flue 45 degree bend : R018.3057



R096.6101

THERMOBILE 41.906.150 - 27 KW Biofuel Heater / Rapeseed Oil Burner, 102,000 BTU




£1,422.00 + VAT..... £1,706.40 (GBP)
carriage code 8

call us to order

THERMOBILE
BIOENERGY 1
