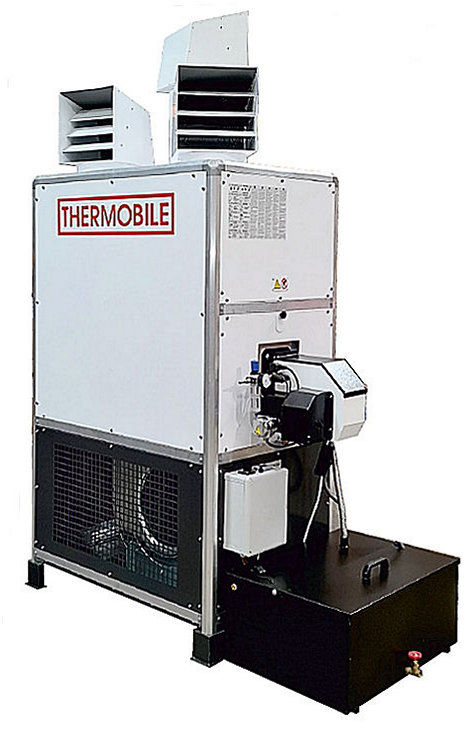

105KW Thermobile Automatic Ignition Biofuel Heater
406,000 BTU Heater (previously for Waste Oil)
This Biofuel heater can burn HVO, Bio Diesel Oil, and certain Vegetable Oils. The heater is a newer version of the former SB110 Waste Oil Heater.
Note: the SB automatic ignition heater requires a compressed air supply.
- ● Overheat thermostat prevents unit from overheating
- ● Flame failure protection switches off heater if ignition problems arise
- ● Automatic burner with fuel pre-heating
- ● Temperature can be thermostatically controlled by optional digital thermostat/timer
- ● When heating, fan only runs when heater is up to temperature
- ● Fan can be used in summertime for ventilation purposes
- ● Clean, soot free combustion
- ● Minimum service and maintenance
- ● Automatic Ignition Biofuel / Waste Oil Heater
- ● Electricity Supply : 240V Single Phase
- ● Net Heat Output BTU : 360,000 BTU/hr
- ● Net Heat Output KW : 105KW/hr
- ● Heated Air Flow : 6150 cubic metres/hour
- ● Fuel Consumption : 13 litres/hour
- ● Requires 5 cfm compressed air
- ● Dimensions : 800 W x 1775 D x 2560 H
Thermobile heaters are backed by 50 years experience in the development and manufacture of space heaters, ensuring a reliable product which will give full customer satisfaction.
Burning of waste oil is regulated. See more information.
heater product code : R096.6106
OPTIONAL ACCESSORIES
digital thermostat/timer : R018.3105
complete flue kit : R018.3005
1000mm flue pipe : R018.3063
500mm flue pipe : R018.3064
flue 45 degree bend : R018.3068
Bulk Transfer Pump/Motor R018.3006
Bulk Transfer Safety Kit R018.3126
