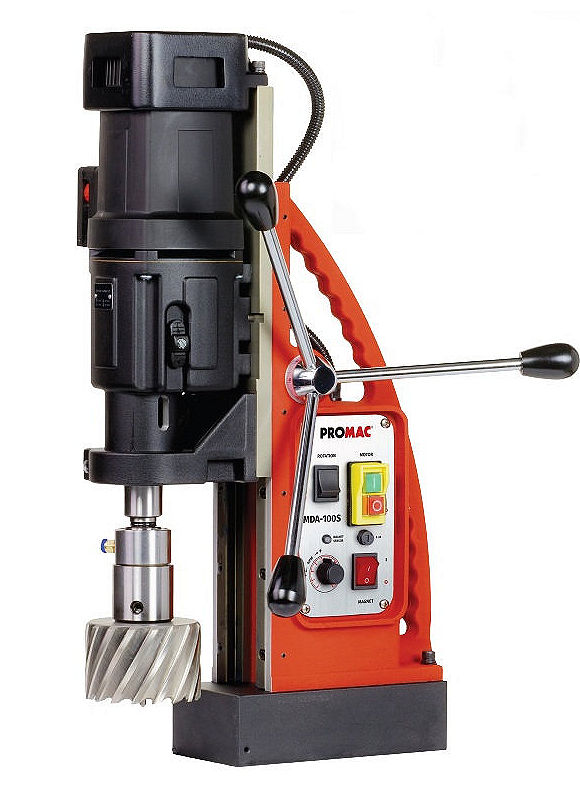

Large Magnetic Drill

This large magnetic drill clamps onto steel with a force of 24,500N. Using Weldon type cutters it can mill/bore holes up to 100mm diameter, or drill holes up to 32mm using twist drills. Rotation speed is variable from 85rpm to 480rpm. Cutting fluid can be applied with the integral coolant system. The spindle has a 3 Morse Taper making it flexible for other accessories. This mag drill has reverse rotation allowing tapping up to M30 (tapping chuck NOT supplied).

• ● Manufacturer: Promac
• ● Model: MDA-100S
• ● Variable Speed Mag Drill
• ● Integrated coolant system
• ● Variable Speed: 85 - 480 rpm

• ● Maximum Ring Cut Diameter: 100mm
• ● Maximum Milling Diameter: 100mm
• ● Maximum Cutting Depth: 50mm
• ● Maximum Twist Drill Diameter: 32mm
• ● Maximum Tapping Diameter: M30
• ● Spindle Stroke: 260mm
• ● Spindle Taper: 3MT
• ● Spindle Adapter: 19.05mm (3/4 inch) Weldon

• ● Magnetic Force: 2450kg (24,500N)
• ● Magnetic Holder Dimensions 220mm x 110mm

• ● Electric Supply: 230V 1-phase
• ● Power: 1800W
• ● Drill Dimensions: 340 x 310 x 710mm
• ● Drill Weight: 32kg

Optional tapping chuck can be purchased separately

  2 years warranty
