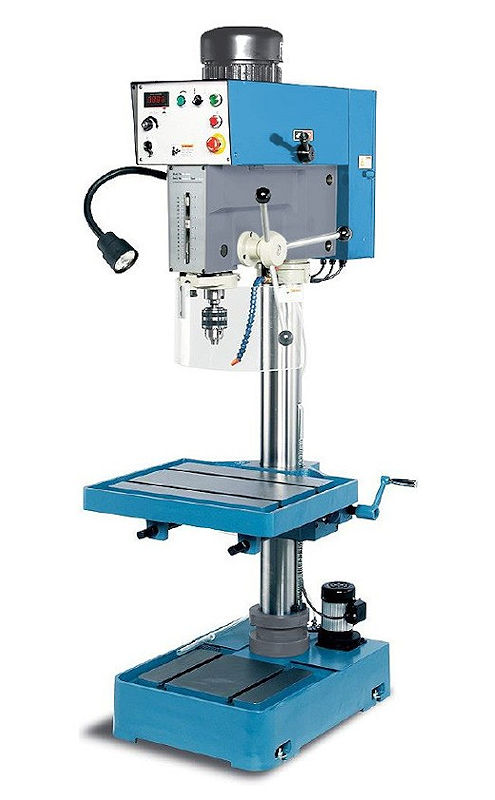

Heavy Duty Pillar Drill, Variable Speed, MT4, 1500W 230V

This heavy duty pillar drill has inverter driven infinitely adjustable speeds between 85 and 2000 rpm (digital speed readout). The drill is suitable for tapping, and the motor is reversable for withdrawing the tap. An integrated pumped coolant system is included. A large 115mm diameter column, and heavy base and table castings, ensures rigidity when drilling at maximum capacity.

• ● Manufacturer: Promac
• ● Model: BX-840VT-M
• ● Max. Drill Capacity: 40mm
• ● Max. Tapping Capacity: M18
• ● Spindle Speeds: 85 to 2000 rpm
• ● Spindle Taper: 4MT / MT4
• ● Spindle Travel: 150mm
• ● Spindle Nose to Table: 925mm
• ● Spindle Nose to Base: 1225mm
• ● Swan Neck: 265mm
• ● Table Dimensions: 559mm x 476mm
• ● Table Working Dimensions: 559mm x 476mm
• ● Main Motor Size: 2HP (1500W)
• ● Coolant Motor Size: 1/8HP
• ● Electric Supply: 230V 1-phase
• ● Drill Dimensions (LWH): 973mm x 673mm x 1814mm
• ● Drill Weight: 311kg

  2 years warranty
