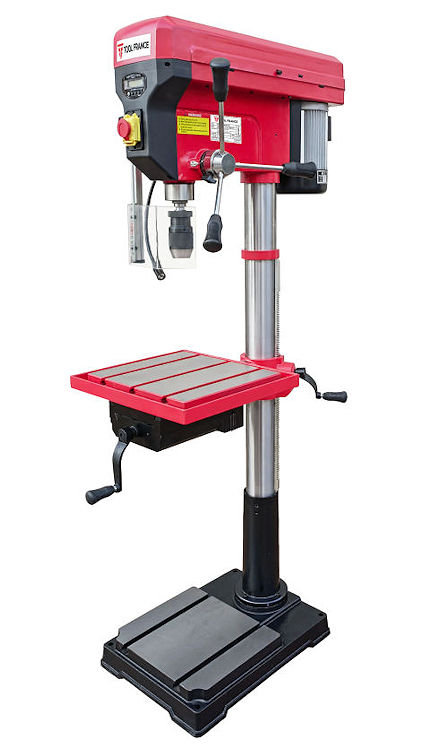

12 Speed Pillar Drill

32mm Drilling Capacity

This large workshop pillar drill can drill up to 32mm diameter in mild steel. The belt type change gives a choice of 12 speeds from 150rpm to 2450rpm and a digital screen displays drill speed. The t-slotted table can be tilted, or rotated 180 degrees when using the integrated drill vice. This has a jaw width of 203mm and a clamping capacity of 160mm.

Three phase 400V power supply required.

  • ● Manufacturer: Tool France
  • ● Model: TFD-32TE
  • ● Max. Drill Capacity: 32mm
  • ● Spindle Speeds: 150 to 2450 rpm
  • ● Spindle Taper: 4MT / MT4
  • ● Spindle Travel: 120mm
  • ● Throat Depth: 255mm
  • ● Table Dimensions: 455mm x 405mm
  • ● Base Dimensions: 580mm x 430mm
  • ● Chuck Size: 20mm
  • ● Motor Size: 1100W
  • ● Electric Supply: 400V 3-phase
  • ● Height: 1720mm
  • ● Weight: 136kg

  Three years warranty

drill product code : R095.3715

R096-3715 pillar drill

R095.3715
T.F TFD-32TE

Pillar Drill, 32mm drilling capacity, 12 speeds, MT4, Vice, 1.1KW 400V

£1,528.00 + VAT..... £1,833.60 (GBP)
carriage code 11


call us to order

FINANCE AVAILABLE (£1000 minimum)
