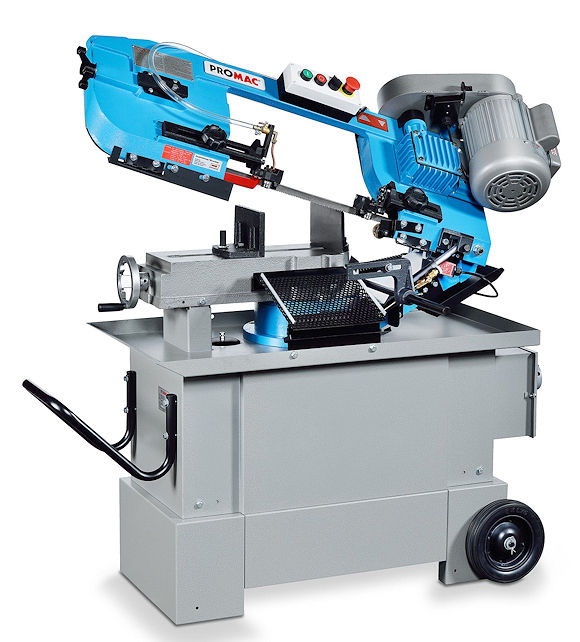

Metal Cutting Bandsaw - 3 Phase (400V 5-pin)
Sawing capacity diameter 180mm, 250 x 180mm rectangular
A 3 phase metal cutting bandsaw with hydraulically controlled descent, coolant pump system and a quick release vice. It is 4 speed belt driven with blade speeds between 22 to 65 metres per minute. The swivel cutting bow makes it possible to cut angles up to 45 degrees. This version is 400V three phase (also available in 230V).
- ● Manufacturer: Promac
- ● Model: 917C
- ● 400V Metal Bandsaw
- ● Can cut angles (swivel arm)
- ● 290mm Vice (working height 780mm)
- ● 180 x 150mm max capacity rectangles
- ● Dimensions (LWH): 1000mm x 430mm x 1250mm
- ● Weight: 180kg
2 years warranty
400V metal bandsaw product code : R081.2020
| Specifications | |
|---|---|
| ● Power | 400V, 3-Phase 3L,N+E |
| ● Motor | 0.75 kW |
| ● Mitre Angle | up to 45 degrees; |
| ● Capacity Round 0°/ 45° | 180 mm / 105 mm |
| ● Capacity Square 0°/ 45° | 180 x 180 mm / 105 x 105 mm |
| ● Capacity Rectanglar 0°/ 45° | 180 x 250 mm / 100 x 120 mm |
| ● 4 Blade Speeds | 22,33,45,65 metres per minute |
| ● Blade Size | 2360 x 19 x 0.9 mm |
