OXFORD I-MIG 330-1

Industrial MIG Welder, Transformer, 330A@35%, 230V (32A)

This rugged built welder from renowned British manufacturer Oxford, with high reliability, excellent welding performance, and long lifespan is made to last. With a mixture of modern components and good old fashioned quality engineering; a copper wound main transformer, rugged switchgear, over rated rectifier and fan, and a simple, robust PCB. This welder will withstand dusty, or damp dirty workshops much better than modern inverter type welders.

An industrial welder suitable for heavy duty welding jobs, ideal for farmers, fabricators, etc looking for a large capacity single phase welder on a 32A supply. This welder is also suitable for automotive work as the current can go as low as 20A, making it possible to weld the thinnest car panels. Oxford cap+ technology ensures a smooth weld on all materials including stainless steel, aluminium etc. A robust PCB gives precise control for super smooth speed control, motor braking and burn back (internal adjustment possible). This welder is also energy efficient giving lower running costs.

  • ● Manufacturer: OXFORD
  • ● Model: I-MIG 330-1
  • ● Manufactured in the UK
  • ● Copper Wound Transformer
  • ● 4-Roller Wire Feed

  2 years machine warranty
  5 years main transformer warranty
  Guaranteed spares availability for 20 years minimum

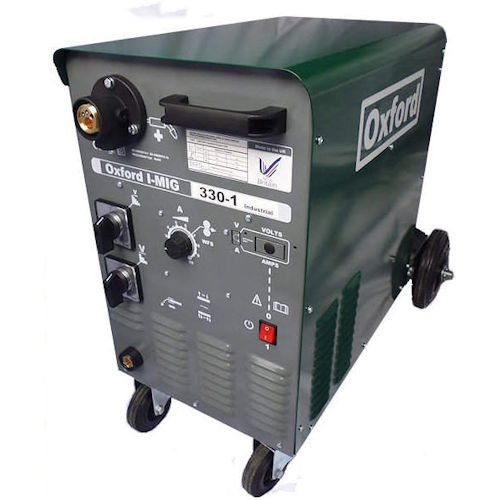

R098.6211 industrial mig welder

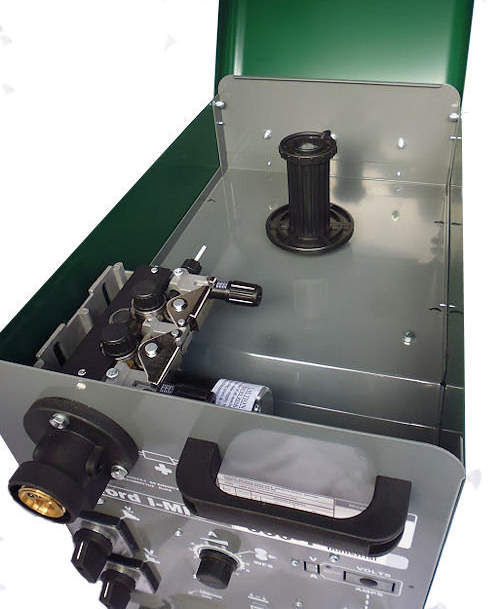

R098.6211 industrial mig welder wire feed

Specifications
Supply Voltage230V
Fuse Rating (slow blow)32A
Min Generator Size6.8KVA for 3/4 power
9.5KVA for full power
Output Current20A - 330A
Voltage Steps16
MIG wire range0.6 - 1.2mm
Approx Size (excluding wheels)360W x 820L x 660H
Approx Weight83kg
Duty Cycle
@ 35%330A
@ 60%250A

Welder is supplied with :-
- Earth Lead
- Gas Hose
- 1.0-1.2mm V-groove wire feed rollers (x2)

Optional accessories available are :-
- Gas Regulator
- MIG Euro-Torches
- Different Wire Feed Rollers

Optional modifications are available (ask for details) :-
- Reverse Polarity Function (for welding with gasless wire)
- Spot Welding Timer

welder product code : R098.6211
for optional 3 metre MIG torch, see: R014.2217
for optional 4 metre MIG torch, see: R014.2218
for optional 5 metre MIG torch, see: R014.2219

for optional gas regulator, see: R014.2230

for spare wire feed rollers (quantity 2 required), see: Oxford Wire Feed Rollers



R098.6211

OXFORD I-MIG 330-1 - Industrial MIG Welder, Transformer, 330A@35%, 230V (32A)




£896.00 + VAT..... £1,075.20 (GBP)
carriage code 6

call us to order

OXFORD
I-MIG 330-1
