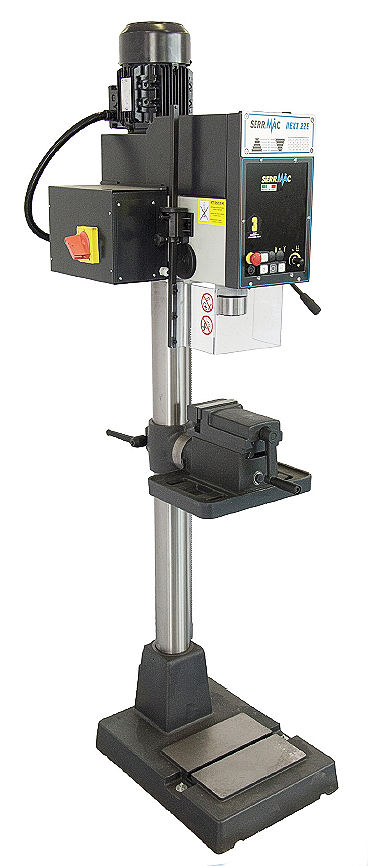

Variable Speed Pillar Drill

This top quality Italian made pillar drill is belt driven with electronic speed variation. Spindle speeds are variable from 98rpm to 3600rpm. The size 3 Morse Taper spindle can accomodate an optional chuck, and drilling capacity is up to 25mm in mild steel. Tapping up to M16 is possible, with reverse rotation to withraw the tap. This version of the V25E drill includes a heavy duty integral vice, fitted to the tilting table which can be totated 180 degrees when the vice is not required

Note: chucks are an optional accessory which should be ordered separately.

  • ● Manufacturer: Serrmac
  • ● Model: V25E-2514
  • ● Industrial Pillar Drill (single phase)
  • ● Includes heavy duty vice
  • ● 750W 230V motor
  • ● Speed Range 98 revs/min - 3600 revs/min
  • ● Variable speeds (electronic control)
  • ● 25mm Drilling Capacity in Mild Steel
  • ● 16mm Tapping Capacity
  • ● 100mm Spindle Travel
  • ● 150mm Throat
  • ● MT3 Spindle
  • ● Dimensions: 410 x 560 x 1970mm high
  • ● Weight: 185 Kg

  Three years warranty

product code : R095.3625

R096-3625 variable speed drill press

Serrmac V25E-2514

Pillar Drill, Variable Speed, Drills 25mm, Taps M16, MT3, Vice, 230V

£3,635.00 + VAT..... £4,362.00 (GBP)
carriage code 11

call us to order

FINANCE AVAILABLE (£1000 minimum)
