Small Cabinet Heater with 55L tank, 30KW

Thermobile Proheat Heater 104,000BTU

*Please state fuel type (diesel or kerosene) at time of ordering*

Thermobile Proheat heaters are perfect for small workshops, garages, showrooms, and retail areas. Their compact design with control panel, thermostat, fuel tank, oil burner and warm air diffuser head all integrated into one unit makes installation easy and cost effective. The built-in tank means that the heater does not require connection to an external fuel tank. Fitted with a low noise centrifugal fan. Automatic operation, with time delay for fan start-up until heater warms up, and over-heat shutdown. This heater can also be used for cold air circulation during the summer months. Thermal efficiency up to 93% is achieved by this heater.

erp logo

It is now mandatory for all new warm air heaters used for the comfort of occupants of a heated space to comply with the new ErP (Energy related Products) regulations (EU directive 2009/125/EC - Lot 21 Tier 2) regarding Eco friendly and Energy Efficient operation.

  • ● Manufacturer: Thermobile
  • ● Model: ProHeat 30 ERP
  • ● Nominal heat output: 30 KW (104,000 BTU)
  • ● Max temperature increase: 27 deg C
  • ● Air flow: 27600 m3/hr
  • ● Flue diameter required: 150mm
  • ● Tank Capacity: 55 litres
  • ● Voltage: 230V

heater product code : R096.6091
for recommended flue kit see : R018.3166

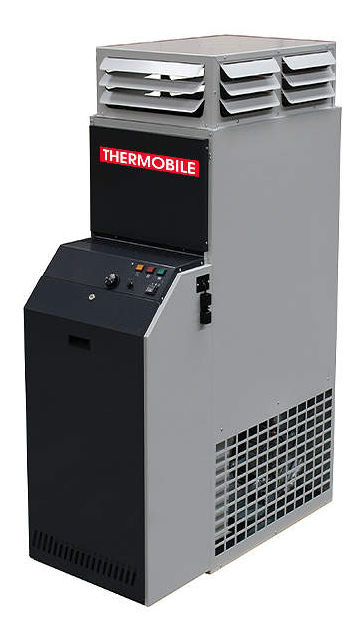

R096.6091 small cabinet heater

cabinet heater internal

cabinet heater dimensions

  • Dimensions:-
  • ● A: 1020mm
  • ● B: 500mm
  • ● C: 1600mm
  • ● D: 1175mm
  • ● DIA: 120mm
R096.6091
THERMOBILE ProHeat 30 ERP

Cabinet Heater with 55L tank, 30KW 104,000BTU, 150mm

£3,240.00 + VAT..... £3,888.00 (GBP)
carriage code 9


call us to order

FINANCE AVAILABLE (£1000 minimum)
