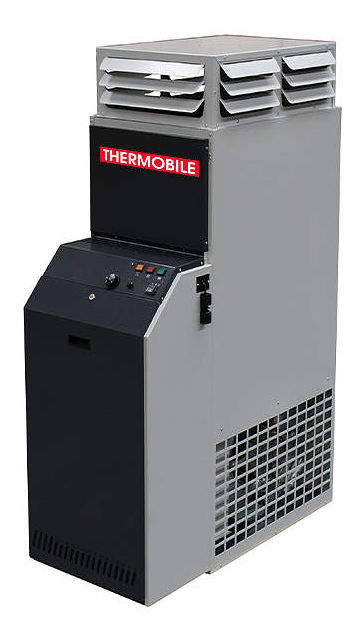

THERMOBILE ProHeat 100 ERP no tank heater

Cabinet Heater without tank, 98KW 333,000BTU, 200mm, 400V

*Please state fuel type (diesel or kerosene) at time of ordering*

Thermobile Proheat heaters are perfect for small workshops, garages, showrooms, and retail areas. Their compact design with control panel, thermostat, oil burner and warm air diffuser head all integrated into one unit makes installation easy and cost effective. This version of th Proheat 100 ERP requires connection to an external fuel tank. Fitted with a low noise centrifugal fan. Automatic operation, with time delay for fan start-up until heater warms up, and over-heat shutdown. The heater can also be used for cold air circulation during the summer months. Thermal efficiency up to 93% is achieved by this heater.

erp logo

It is now mandatory for all new warm air heaters used for the comfort of occupants of a heated space to comply with the new ErP (Energy related Products) regulations (EU directive 2009/125/EC - Lot 21 Tier 1) regarding Eco friendly and Energy Efficient operation.

  • ● Manufacturer: Thermobile
  • ● Model: ProHeat 100 ERP
  • ● Nominal heat output: 98 KW (333,000 BTU)
  • ● Max temperature increase: 31 deg C
  • ● Air flow: 8800 m3/hr
  • ● Flue diameter required: 200mm
  • ● Tank Capacity: NO TANK
  • ● Voltage: 400V 3-phase

heater product code : R096.6093
for recommended flue kit see : R018.3168

R096.6038 garage cabinet heater

cabinet heater internal

cabinet heater dimensions

  • Dimensions:-
  • ● A: 1400mm
  • ● B: 760mm
  • ● C: 2000mm
  • ● D: 1570mm
  • ● DIA: 180mm


R096.6093

THERMOBILE 98.087.607 ERP - Cabinet Heater without tank, 98KW 333,000BTU, 200mm



manufacturers list price £4195 + VAT
OUR PRICE IS ONLY
£3,085.00 + VAT..... £3,702.00 (GBP)

carriage code 9

call us to order

THERMOBILE
ProHeat 100 ERP no tank
