THERMOBILE PSO 30 ERP heater
Workshop Heater, 30KW 102,000BTU, Oil, 5"
*Please state fuel type (diesel or kerosene) at time of ordering*
This range of cabinet heaters for workshops, warehouses, industrial units, factories and retail areas is compliant with Part L2B of the 2010 Building Regulations. These space heaters are pre-wired with an electronic programmer to control heater on/off cycles, temperature, frost protection etc. A combined fan and limit switch is fitted; in the event of overheating the unit will be automatically shut down by the limit thermostat. A stainless steel combustion chamber is fitted as standard, and the heater comes supplied with a flue tee-piece. Burners are high quality fuel efficient high/low two stage type manufactured by Riello, thus ensuring long life and reliability. Thermal efficiency in excess of 91% is achieved by this heater.
Optional duct outlet spigots, and uprated fan motors for ducting are available.
It is now mandatory for all new warm air heaters used for the comfort of occupants of a heated space to comply with the new ErP (Energy related Products) regulations regarding Eco friendly and Energy Efficient operation. As well as normal thermal efficiencies, calculations for seasonal efficiency also include air flow, heat exchanger temperature rise, and electrical power consumption. This new, improved range of heaters are ErP compliant (EU directive 2009/125/EC - Lot 21 Tier 1). Improvements to comply include changing to a burner of a type which has high and low settings, fitting an electronic timer/thermostat controller which automatically optimises efficiency, and ensuring all electrical switchgear and motor are energy efficient, plus ensuring that exhaust gases are all low NOx (Nitrogen Oxide).
- ● Manufacturer: Thermobile
- ● Model: PSO 30 ERP
- ● Nominal heat output (High Setting): 30KW
- ● Nominal heat output (Low Setting): 21KW
- ● Air flow: 2088 M3/hr
- ● Air throw (approx.): 14m
- ● Number of discharge heads: 2
- ● Static Pressure: standard motor - 188Pa
- ● Fuel Consumption: 3.2 l/hr
- ● Fuel connection: 3/8" Rc
- ● Main fan start/run current: 6.5A/4.2A
- ● Flue diameter: 5 inch
- ● Combustion air spigot diameter: 150mm
- ● Noise level: 56dB(A) @ 5m
- ● Nett weight: 170kg
- ● Voltage: 230V
2 years parts warranty
1 years labour warranty
10 years heat exchanger warranty (depending on total operational hours)
heater product code : R096.6030
for recommended flue kit see : R018.3093

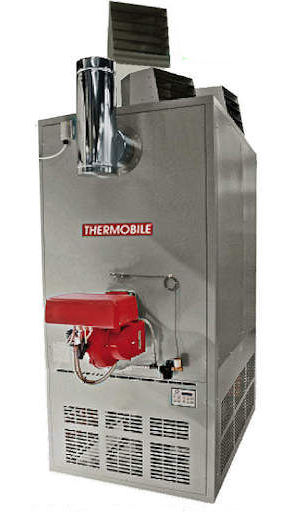

typical example of heater in this range
- ● Dimensions:-
- ● A: 735mm
- ● B: 670mm
- ● C: 1820mm
- ● D: 865mm
- ● E: 235mm
- ● F: 1535mm
- ● G: 150mm
- ● H: 285mm
- ● J: N/A
- ● DIA: 5"
