BAILEIGH VMD-40G

Mill Drill, gear driven 6 speed, drills 38mm, face mills 76mm, MT4, 1100W

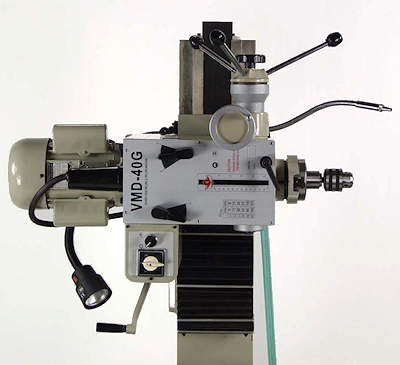

The Baileigh VMD-40G mill/drill gives the benefit of having two machines in one; both a pillar drill and a milling machine. The head is gear driven with six spindle speeds. Feed is manual. An additional feature is the ability to rotate the head horizontally. The mill-drill is also supplied with a pumped coolant system, and a combined storage cabinet / stand.

  • ● Manufacturer: Baileigh
  • ● Model: VMD-40G
  • ● Gear Driven Mill/Drill
  • ● 38mm drilling capacity
  • ● 76mm face milling capacity
  • ● MT4 spindle taper
  • ● 120mm spindle travel
  • ● 445mm from spindle nose to table
  • ● 368mm X-axis travel
  • ● 230mm Y-axis travel
  • ● 730mm x 210mm table
  • ● 16mm T-slots
  • ● Six spindle speeds (75, 170, 280, 540, 960, 1600rpm)
  • ● 1.5HP 230V main motor
  • ● Coolant motor and pump
  • ● Shipping Weight: 392 kg
  • ● Shipping Dimensions: 850 long x 760 wide x 1460mm high

mill/drill product code : R081.2241

r081-2241 gear driven mill/drill
r081-2241 gear driven mill/drill head

R081.2241
Baileigh VMD-40G

Mill Drill, gear driven 6 speed, drills 38mm, face mills 76mm, MT4, 1100W


price on application


call us to order

FINANCE AVAILABLE (£1000 minimum)
