Waste Oil Heater SB40 153,000 BTU Automatic Ignition

153,000 BTU / 45KW gross (140,000 BTU / 40KW net)

Save on workshop heating costs by using waste oils produced on your business premises as FREE heating fuel. The capital cost of the SB40 heater can typically be paid back within 1 ½ to 2 seasons, resulting in large savings in future.

This waste oil heater can burn used oil (synthetic or mineral) from petrol or diesel engines, gearboxes, transmissions and hydraulic systems. In addition, the heater can burn waste oil mixed with diesel, or diesel only. (The following should never be used; solvents, thinners, transformer oil, petrol, petro-chemical based oils, or oils above SAE90).

Note: the SB range of automatic ignition heaters require a compressed air supply when burning waste oil.

  • ● Overheat thermostat prevents unit from overheating
  • ● Flame failure protection switches off heater if ignition problems arise
  • ● Automatic burner with fuel pre-heating (on used oil)
  • ● Temperature can be thermostatically controlled by optional digital thermostat/timer
  • ● When heating, fan only runs when heater is up to temperature
  • ● Fan can be used in summertime for ventilation purposes
  • ● Clean, soot free combustion
  • ● Minimum service and maintenance

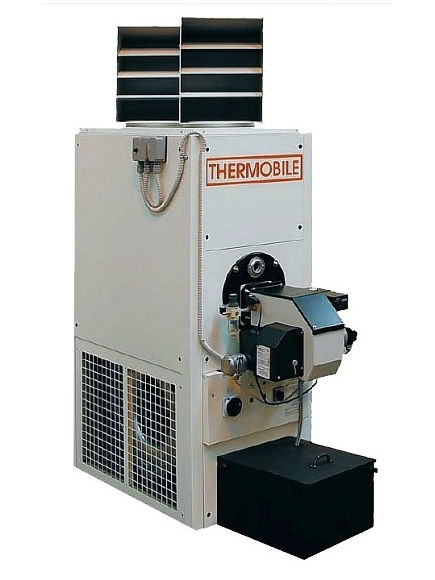

SB40 Waste Oil Heater

  • ● Automatic Ignition Waste Oil Heater
  • ● Electricity Supply : 230V
  • ● Net Heat Output BTU : 140,000 BTU/hr (actual maximum will depend on type of waste oil used)
  • ● Heated Air Flow : 3200 cubic metres/hour
  • ● Fuel Consumption : 4.5 litres/hr
  • ● Fuel Tank Capacity : 80 litres
  • ● Dimensions : 570 W x 1460 D x 1850 H

Thermobile waste oil heaters are backed by 50 years experience in the development and manufacture of space heaters, ensuring a reliable product which will give full customer satisfaction.

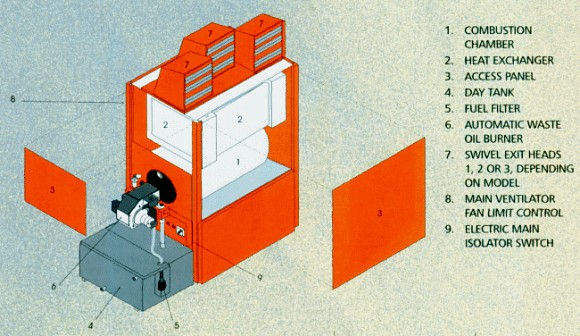

SB40 Waste Oil Heater diagram

Burning of waste oil is regulated. See more information.

For SWOB (Small Waste Oil Burners up to 0.4MW) permit application:-

  • Manufacturer: Thermobile
  • Model: SB40
  • Burner Type : Atomising
  • Net Rated Thermal Input : 0.045MW / 155,000BTU / 45KW

heater product code : R096.6005

digital thermostat/timer : R018.3105
complete flue kit : R018.3003
1000mm flue pipe : R018.3051
500mm flue pipe : R018.3052
flue 45 degree bend : R018.3057


Waste Oil Heater SB40 153,000 BTU 3200m3/hr 80L Auto Ign

£5,704.00 + VAT..... £6,844.80 (GBP)
carriage code 8

call us to order
