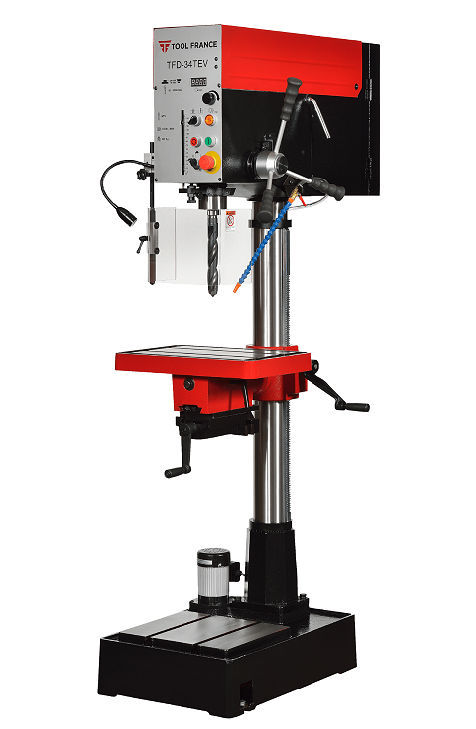

Variable Speed Pillar Drill

3-phase, 32mm Drilling Capacity

The heavy duty TFD-30TEV vertical drill press can drill up to 32mm diameter, and tap up to 16mm in mild steel. With a 3-phase (400V) variable speed motor and two V-belt positions, drilling speed can be varied from 50 rpm to 2500rpm. The Morse Taper 3 spindle has a vertical stroke of 140mm and a keyless drill chuck is supplied. The table tilts, with a vice on one side which can be turned upside down and stored underneath when not required. This pillar drill also has a coolant system, plus an LED worklight.

  • ● Manufacturer: Tool France
  • ● Model: TFD-34TEV
  • ● Industrial Pillar Drill
  • ● 1500W 400V 3-phase motor
  • ● Speed Range 80rpm - 2500rpm
  • ● Variable speeds (electronic control)
  • ● Digital speed display
  • ● 32mm Drilling Capacity in Mild Steel
  • ● 16m Tapping Capacity with reversing
  • ● 140mm Spindle Stroke
  • ● 140mm Throat
  • ● Morse Taper 3 Spindle
  • ● Table tilts 180 degrees for Integral Vice
  • ● Table size: 320mm x 480mm
  • ● Includes Coolant System with reservoir
  • ● Dimensions: 480 x 880 x 1810mm high
  • ● Weight: 295 Kg

  Three years warranty

product code : R095.3716

R096-3716 3-phase workshop pillar drill

R095.3716
T.F TFD-34TEV

Pillar Drill, 32mm drilling capacity, variable speed, MT4, Vice, 1.5KW 400V

£4,675.00 + VAT..... £5,610.00 (GBP)
carriage code 11


call us to order

FINANCE AVAILABLE (£1000 minimum)
