383KW Containerised Space Heater 400V - 3 x 500mm outlet

horizontal line

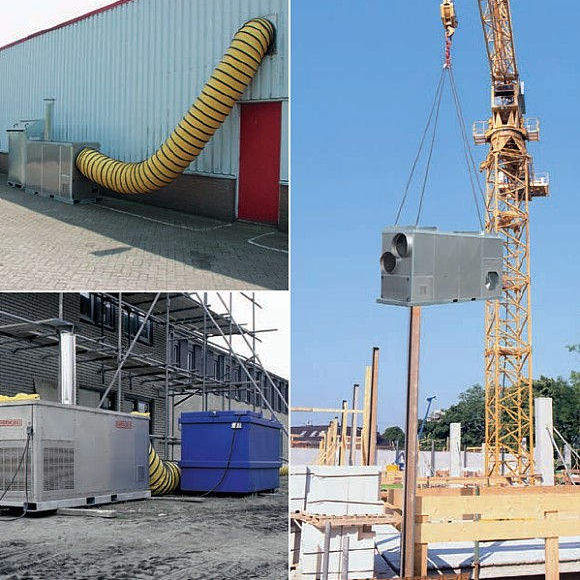

This range of industrial heaters are suitable for the construction, exhibition and marquee industries. Typical uses are heating and drying of building sites, drying buildings after flooding, heating of large workshops, marquees, exhibition halls, showrooms and sports halls.

These heaters include many features. Corrosion resistant stainless steel bodywork on a stainless steel frame. Lockable door panels for the control box and burner area with feed through glands for cables and fuel hoses allow the heater to be safely left unattended. The humidity proof control box contains switches, pilot lghts and digital temperature regulation. The heaters are stackable. Crane hooks are fitted in addition to forklift slots. A lower tray is fitted to contain oil spillage whilst servicing. A Tigerloop fuel de-aerator is fitted as standard on all models. At start-up the heater fan does not operate until the heater is up to temperature, and the fan switches off at 40 deg. C during cool-down after the heater is switched off. Therefore no cold air is ventilated. A maximum temperature thermostat and overheating protection are included. The IMAC 4000 models are fitted with a 2-stage burner and a 2-speed fan thus giving 2 heat settings. The IMAC 4000 models are controlled by a frequency controller that functions as a soft starter for the fan.

  • Manufacturer: Thermobile
  • Model: IMAC 4000 E
  • Heat output: 261kW and 383kW
  • Approx fuel consumption oil: 26 and 38 litres/hr max
  • Heated air flow: 18,000 and 24,000 m3/hr
  • Max. back pressure of fan: 400, 700 and 1000Pa
  • Power consumption: 400V 9, 20 and 20.3Amps
  • Flue connection: Diameter 300mm
  • Heat outlet cone: Diameter 500mm (quantity 3)
  • Fitted with thermostat connection socket
  • High efficiency heat exchanger
  • Combustion chamber heat resistant up to 850 deg C
  • Powerful heat distribution with large heat throw
  • Clean dry air
  • Dimensions (LWH): 3850mm x 1200mm x 2010mm
  • Weight: 1300kg

Note: these heaters require fuel supplied from an external fuel tank (we can quote on optional Multitanks)

heater product code : R096.6218

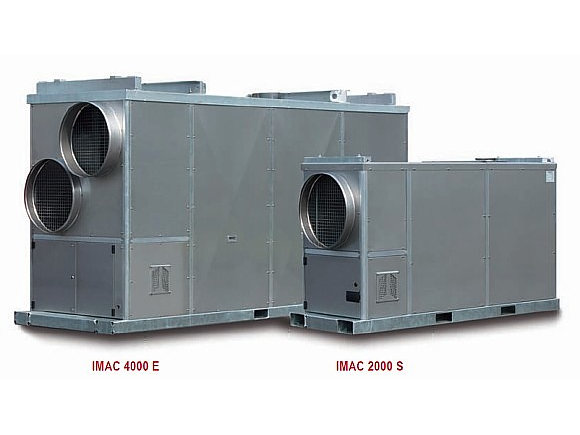

large containerised space heater
large containerised space heater



R096.6218
383KW Containerised Space Heater, 3x500 outlet, 1,307,000BTU 400V


price on application

carriage code 9

call us to order

THERMOBILE
IMAC 4000 3x500
