Waste Oil Heater AT307 102,000 BTU 1000m3/hr Man Ignition

102,000 BTU / 30KW gross (80,000 BTU / 23KW net)

horizontal line

Save on workshop heating costs by using waste oils produced on your business premises as FREE heating fuel. The capital cost of the AT307 heater can typically be paid back within one season, resulting in large savings in future.

This waste oil heater can burn used oil (synthetic or mineral) from petrol or diesel engines, gearboxes, transmissions and hydraulic systems. In addition, the heater can burn waste oil mixed with diesel, or diesel only. (The following should never be used; solvents, thinners, transformer oil, petrol, petro-chemical based oils, or oils above SAE90).

  • ● Sealed combustion chamber suitable for use in garages
  • ● Overheat thermostat prevents unit from overheating
  • ● Flame failure protection switches off heater if ignition problems arise
  • ● Burner pan overflow device switches off fuel pump to prevent oil spillage
  • ● Combustion chamber pressure relief valve for safety
  • ● Combustion air intake allows option of drawing air from outside (no dangerous fumes)

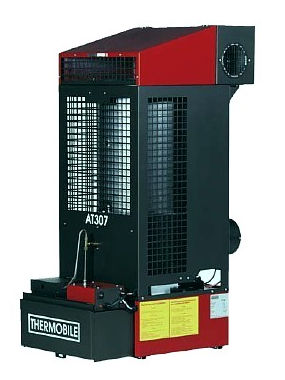

AT307 Waste Oil Heater

  • ● Manual Ignition Waste Oil Heater
  • ● Electricity Supply : 230V
  • ● High and Low heat settings
  • ● Net Heat Output BTU : 60,000 and 80,000 BTU/hr (actual maximum will depend on type of waste oil used)
  • ● Heated Air Flow : 1000 cubic metres/hour
  • ● Fuel Consumption : 2 - 3 litres/hr
  • ● Fuel Tank Capacity : 50 litres
  • ● Dimensions : 540 W x 1050 D x 1270 H

Thermobile waste oil heaters are backed by 50 years experience in the development and manufacture of space heaters, ensuring a reliable product which will give full customer satisfaction.


AT307 Waste Oil Heater diagram

Burning of waste oil is regulated. See more information.


For SWOB (Small Waste Oil Burners up to 0.4MW) permit application:-

  • ● Manufacturer: Thermobile
  • ● Model: AT307
  • ● Burner Type : Vaporising
  • ● Net Rated Thermal Input : 0.029MW / 100,000BTU / 29KW


heater product code : R096.6002

OPTIONAL ACCESSORIES
internal (vertical) combustion air kit : R018.3017
external (horizontal) combustion air kit : R018.3018
hot air booster : R018.3019
basic flue kit : R018.3000
complete flue kit : R018.3001
1000mm flue pipe : R018.3051
500mm flue pipe : R018.3052
flue 45 degree bend : R018.3057



R096.6002
Waste Oil Burner AT307 102,000 BTU 1000m3/hr Man Ignition


£1,459.00 + VAT..... £1,750.80 (GBP)
carriage code 8

call us to order

THERMOBILE
AT307

see more in our Manual Ignition Waste Oil Burner section
