Metal Bandsaw, 270mm dia, 220 x 350mm rect, Semi-Auto, Dual Swivel Head Mitre, 220V

horizontal line

A horizontal metal cutting bandsaw for fabrication shops. With direct drive, variable blade speed, both manual and hydraulic descent, and a quick vice. Mitre cuts can be done by swivelling the cutting arm to the left or right.

  • ● Manufacturer: Baileigh
  • ● Model: BS-350SA-220V
  • ● Gearbox driven; no belts to adjust or break
  • ● Inverter driven motor giving variable speed
  • ● Coolant pump to wash away chips, cool and lubricate the blade
  • ● Swivel head for mitre cuts; vice and material stays in place
  • ● Head swivels up to 60 degrees to the right, and up to 45 degrees to the left
  • ● Roller bearing/carbide blade guides
  • ● Pressure assisted hydraulic descent control
  • ● Hydraulic return
  • ● Hydraulic vice
  • ● Foot pedal control
  • ● Automatic shut off in event of broken blade

bandsaw product code : R081.2009

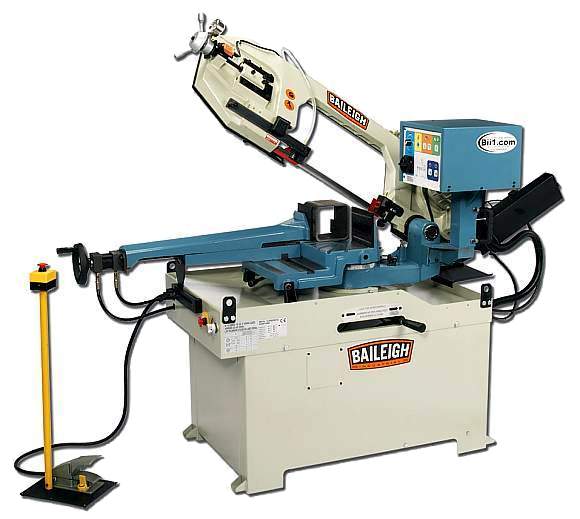

R081.2009 semi automatic metal bandsaw

Specifications
Power220V, 50Hz, 1-Phase
MotorHigh Torque 1.5Kw / 2HP (AC)
Mitre Angle0 - 60° right and 45° left
Capacity Rectangle 90°/ 45° / 45° left350 x 220 mm / 240 x 160 mm / 185 x 110 mm
Capacity Round 90°/ 45° / 60° / 45° left270 mm / 240 mm / 160 mm / 210 mm
Capacity Square 90°/ 45° / 60° / 45° left260 x 260 mm / 220 x 220 mm / 150 x 150 mm / 180 x 180 mm
Table Height889 mm
Blade Speed20 - 85 mpm
Blade Size25 x 1 x 3160 mm
Shipping Weight531 kgs
Shipping Dimensions1829 x 762 x 1676 mm




R081.2009
Metal Bandsaw, 270mm dia, 220 x 350mm rect, Semi-Auto, Dual Swivel Head Mitre, 220V


£7,250.00 + VAT..... £8,700.00 (GBP)
carriage code 9

call us to order

BAILEIGH
BS-350SA - 220V

see more in our 230 Volt Metal Bandsaws section
