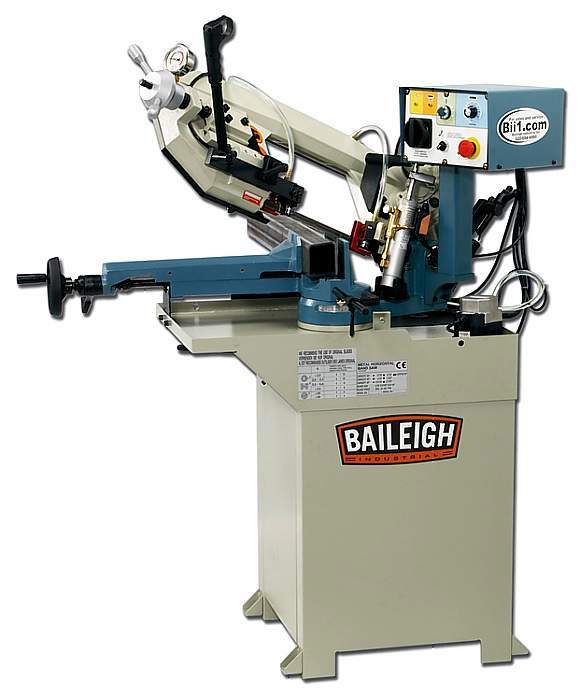

Metal Bandsaw, 177mm dia, 100 x 210mm rect, Swivel Head Mitre

horizontal line

A horizontal metal cutting bandsaw for fabrication shops and small workshops. With direct drive, variable blade speed, both manual and hydraulic descent, and a quick vise. Mitre cuts can be done by swivelling the cutting arm by up to 60 degrees.

  • Manufacturer: Baileigh
  • Model: BS-210M
  • Gearbox driven; no belts to adjust or break
  • Inverter driven motor giving variable speed
  • Coolant pump to wash away chips, cool and lubricate the blade
  • Swivel head for mitre cuts; vice and material stays in place
  • Roller bearing/carbide blade guides
  • Hydraulic descent control
  • Manual return

bandsaw product code : R081.2004

R081.2004 metal bandsaw

Specifications
Power220V, 50Hz, 1-Phase
MotorHigh Torque 0.75Kw / 1HP (AC)
Mitre Angle1 - 60°
Capacity Rectangle 90°210 mm x 170 mm
Capacity Round 90°/ 45° / 60°177 mm / 120 mm / 69 mm
Capacity Square 90°/ 45° / 60°177 x 177 mm / 110 x 110 mm / 60 x 60 mm
Table Height889 mm
Blade Speed20 - 85 mpm
Blade Size19 x 0.889 x 2108 mm
Shipping Weight202 kgs
Shipping Dimensions1524 x 1118 x 1219 mm




R081.2004
Metal Bandsaw, 177mm dia, 100 x 210mm rect, Swivel Head Mitre


£1,730.00 + VAT..... £2,076.00 (GBP)
carriage code 8

call us to order

BAILEIGH
BS-210M
